Tutorial

IntelliJ with GitHub

Posted on by Keith Rieck

Programming as a team introduces special challenges. You’ll need extra communication to keep everyone productive, and additional tools to keep from losing work.

Professional environments use Revision Control Systems to store the code, communicate the changes, and keep people from overwriting each other’s work.  FRC programming teams should also use Revision Control.

Probably the most popular revision control system right now is git, a distributed version control system created by Linus Torvalds, the same guy who created Linux. You can use git from the command line, or from within development environments such as Eclipse, IntelliJ, and Visual Studio Code.  GitHub is a web-based hosting service for git, and the GitHub corporation is a FIRST sponsor.  All programming mentors and students can get free GitHub accounts, and FIRST teams can get upgraded Team Accounts.

To say that git is “distributed” means that every programmer will have a copy of the code, along with the history of the changes.  There is also one remote repository of the code out on the internet. Programmers will occasionally pull changes from the remote repository to their local copy and occasionally push their own changes up to the remote repository.  In this way, everyone eventually has the same code and the same history.

Combinations of the code files are called “commits“, and the word “commit” here is both a noun and a verb.  Committing your changes creates a commit that you can retrieve later.

OK, I know that that was a lot of information.  Honestly, git is a really deep subject, and companies that use it develop really complicated methodologies for its use.  I do not recommend that FRC teams try to use everything in the git toolkit, or try to emulate commercial practices.  Especially at first.  Instead, let’s lay out the minimal functions.

Installing and configuring git

IntelliJ provides an excellent user interface to git, much better than the UI in Eclipse or VS Code.  However, the git package is separate from IntelliJ.  You must install it on your laptop.  Instructions are at:  https://git-scm.com/ .

You should configure git to know who you are.  This information will be added to the repository very time you commit.  Open up a terminal window and execute the following:

git config --global user.email "myEmailAddress@whereever.com"
git config --global user.name "My real name"

Cloning an existing repository

Suppose that there is a repository on GitHub that you’d like to download to your laptop.  Making a local copy is called making a clone.

Consider the code repository at:  https://github.com/firebears-frc/testrobot0.  Go ahead and visit that page in a browser.  Press the green button labeled “Clone or Download” and then press the little clipboard button.  This will copy the repository’s formal URL into your clipboard.

vsc_git_clone

Now go to IntelliJ:

  1. From the main menu select File > New > Project from version control > git
  2. Paste your git URL into the “Clone Repository” dialog.  Click “OK” and open the new project in the current window.
  3. A dialog may appear asking if you want to import a Gradle project.  You do.
    If the dialog gets lost, open your project in the Project tool window.  Right-click on the build.gradle file and select “Import Gradle Project”.

At this point you now have a clone of the repository on your machine.  You won’t be able to push changes up to the remote repository unless the owner has granted you permission, but you can read, edit, and deploy this code to the robot.

Creating a new repository

Suppose you have a robot project on your local machine that has never been under git control, but you’d like to upload it into GitHub.   Open your project in IntelliJ and then:

  1. From the menu select VSC > Import into Version Control > Share Project on GitHub.
  2. Log on with your GitHub account:
  3. Specify the repository name and description:
    intellij_github_share
  4. Make the initial commit of all your files:
    intellij_github_commit_1
  5. Now go to your browser and visit the page on https://github.com for your new repository.  You should now see all the files listed on the web page.

Note that this process has initialized your local project to be tracked by git.    You’ll notice that there is now a “Version Control” tab at the bottom of the window that will open the Version Control tool window.  The “Local Changes” tab will show files that have been added or modified since your last commit.


Also notice the branch indicator in the lower right corner of the screen.  This will be used when you start managing multiple branches in your repository.

Committing changes to the code

From now on, when you add files, delete files, or modify files, git and IntelliJ will keep track of how your code differs from the most recent commit.  The Local Changes tab keeps track of what has changed.  When you are ready to make a commitment, select the files, right-click, and select “Commit”.

intellij_github_commit_2

Type in a commit message.  Try to write informative messages, since you and others will be reading this later.  Good messages say things like “Updated autonomous commands for new encoder” or “Code changes after first regional”.   Bad messages contain jokes or gibberish or say things like “changed stuff”.

intellij_github_commit_3

After entering a useful message, hit the “Commit” button.  This will commit your changes locally, but will not yet push those changes upstream to Github.

Pulling changes back from the repository

Suppose someone else has made changes to the code and pushed them up to the remote repository.  You’d like to fetch those changes and merge them into our code.  This is called doing a pull from the remote.

You can pull at any time, but it is usually best to commit your code locally before pulling.  That is to say, commit the code but don’t push it up yet.  Follow the directions in the previous section to do the commit.

To pull down changes, select from the main menu:  VCS > Git > Pull.   The best case scenario (which is usually what happens) is that upstream changes will be seamlessly added to your code and everything will work perfectly.

One thing that might go wrong is that the changes pulled in will invalidate or undo something you are doing.  You should always look over the incoming changes.

The worst case scenario is that someone else will have changed files that you are working on, and you will need to “merge” changes.  The Conflicts dialog will show which files are in conflict:

intellij_github_merge_1

For each conflicting file, you will have three options

  • Accept Yours : ignore all changes in the remote repository and stick with your changes.
  • Accept Theirs : overwrite this file with the file from the remote repository.
  • Merge: Manually decide how the conflict will be resolved.  This involves picking out individual changes will be copied from your branch or from the remote branch.  If neither change looks right, you can edit text in the middle panel any way you like:intellij_github_merge_2.png

After you’ve modified a conflicted file and saved the changes, go back to the Local Changes view.   After merging all the conflicts, perform another “Commit”.

Pushing your changes up to the repository

If you are ready to release your changes to the rest of the group, you can push your commits up to the remote repository.  Use the menu options VCS > Git > Push.

Synching with the remote repository

There’s an important discipline that everyone must develop with respect to the remote repository, which is that you should always pull in remote changes before pushing up your own.  If there are incoming changes, then you must recheck the merged code to verify that it is OK.

With multiple programmers, you should perform the following steps manually:

  1. Commit your changes locally.
  2. Pull remote changes, and deal with any merge conflicts.
  3. Verify that the merged code compiles correctly and that the code works correctly.  If there are any problems, fix them and then go back to step 1.
  4. Push all commits to the remote repository.

Further Reading:

0
Tutorial

Eclipse with Github

Posted on by Keith Rieck

Programming alone is sometimes difficult, but one programmer can only do so much. It’s better to work as a team. Groups of programmers can share the load, but having multiple people working on the same code adds additional challenges.  You’ll need extra communication to keep everyone productive, and additional tools to keep from losing work.

Professional environments use Revision Control Systems to store the code, communicate the changes, and keep people from overwriting each other’s work.  FRC programming teams should also use Revision Control.

Probably the most popular revision control system right now is git, a distributed version control system created by Linus Torvalds, the same guy who created Linux. You can use git from the command line, or from within development environments such as Eclipse, IntelliJ, and Visual Studio Code.  GitHub is a web-based hosting service for git, and the GitHub corporation is a FIRST sponsor.  All programming mentors and students can get free GitHub accounts, and FIRST teams can get upgraded Team Accounts.

To say that git is “distributed” means that every programmer will have a copy of the code, along with the history of the changes.  There is also one remote repository of the code out on the internet. Programmers will occasionally pull changes from the remote repository to their local copy and occasionally push their own changes up to the remote repository.  In this way, everyone eventually has the same code and the same history.

Combinations of the code files are called “commits“, and the word “commit” here is both a noun and a verb.  Committing your changes creates a commit that you can retrieve later.

OK, I know that that was a lot of information.  Honestly, git is a really deep subject, and companies that use it develop really complicated methodologies for its use.  I do not recommend that FRC teams try to use everything in the git toolkit, or try to emulate commercial practices.  Especially at first.  Instead, let’s lay out the minimal functions.

Installing and configuring git

You are not required to install git, since there is a version packaged within Eclipse.  However, you may choose to install it anyway.  Instructions are at:  https://git-scm.com/ .

You should configure git to know who you are.  This information will be added to the repository very time you commit.  Open the Eclipse Preferences dialog and select Team > Git > Configuration.  Add user settings for “user.email” and “user.name”:

eclipse_git_config

Cloning an existing repository

Suppose that there is a repository on GitHub that you’d like to download to your laptop.  Making a local copy is called making a clone.

Consider the code repository at:  https://github.com/firebears-frc/testrobot0.  Go ahead and visit that page in a browser.  Press the green button labeled “Clone or Download” and then press the little clipboard button.  This will copy the repository’s formal URL into your clipboard.

vsc_git_clone

Now go to Eclipse:

  1. From the main menu select File > Import…
  2. In the Import dialog, select Git > Projects from Git.
  3. Select Clone URI
  4. The Source Git Repository page should already be populated from your clipboard.
  5. For Branch Selection, select at least the “master” branch
  6. For Location Destination, make sure you’ve selected a plausible location, such as in your Documents directory.
  7. Specify the project type.  In this case, choose to import existing Eclipse projects.  Hit the Finish button

At this point you now have a clone of the repository on your machine.  You won’t be able to push changes up to the remote repository unless the owner has granted you permission, but you can read, edit, and deploy this code to the robot.

Creating a new repository

Suppose you have a robot project on your local machine that has never been under git control, but you’d like to upload it into GitHub.

Open the project in Eclipse and then open a browser to https://github.com.

  1. In the browser, log into your GitHub account.  Click on a green button that says either “New” or “New Repository”.
  2. Github will ask for a repository name.  Give it the same name as project directory on your laptop.  You can also specify a description. Probably you should make it a public repository.
    However, do not add a README file or a .gitignore file or a license file.  Your GitHub remote repository must be totally empty at this point.
  3. After creating the repository, your browser will go to a page which displays your new repository URL.  Copy this value into your clipboard.
  4. In Eclipse, right-click on the project name and select Team > Share Project…
    1. Check the box for “Use or create repository or create new one.
    2. Click on the Location of your project
    3. Click the “Create Repository” button
    4. Click the “Finish” button.  Your project will now be initialized as a local git repository.
  5. Now you need to commit all your files.  Right-click on the project and select Team > Commit… This will expose the Git Staging view.
    1. Drag all files from “Unstaged Changes” to “Staged Changes”
    2. Type in a Commit Message describing this commit.  Normally you should put in something informative, but in this case just say “Initial commit”.
    3. Click Commit and Push…
    4. The Destination Git Repository dialog will be filled in based on your clipboard.
    5. Click the Next button twice to get to the “Push Confirmation” dialog.  Push the Finish button.
  6. Now go back to your browser and visit the page for your new repository.  You should now see all the files listed on the web page.

Committing changes to the code

From now on, when you add files, delete files, or modify files, git and Eclipse will keep track of how your code differs from the most recent commit.  The Git Staging view keeps track of what has changed.  When you are ready to make a commitment, drag the files you want committed into the “Staged Changes” area.  Usually you’ll commit all changes, but you might choose to just stage a subset.

eclipse_git_commit0

Type in a commit message.  Try to write informative messages, since you and others will be reading this later.  Good messages say things like “Updated autonomous commands for new encoder” or “Code changes after first regional”.   Bad messages contain jokes or gibberish or say things like “changed stuff”.

After entering a useful message, hit the “Commit” button.  This will commit your changes locally, but will not yet push those changes upstream to Github.

Pulling changes back from the repository

Suppose someone else has made changes to the code and pushed them up to the remote repository.  You’d like to fetch those changes and merge them into our code.  This is called doing a pull from the remote.

You can pull at any time, but it is usually best to commit your code locally before pulling.  That is to say, commit the code but don’t push it up yet.  Follow the directions in the previous section to do the commit.

To pull down changes, right-click on the project and select Team > Pull.   The best case scenario (which is usually what happens) is that upstream changes will be seamlessly added to your code and everything will work perfectly.

One thing that might go wrong is that the changes pulled in will invalidate or undo something you are doing.  You should always look over the incoming changes.  Check the Problems view in Eclipse to see if new errors have been added.  Recompile and run any relevant tests.

The worst case scenario is that someone else will have changed files that you are working on, and you will need to “merge” changes.  The Git Staging view will show which files are in conflict.

eclipse_git_merge1

Right click on one of the conflicted files and and select the Merge Tool, which will show the differences between your commit and the incoming commits.  In the picture below, local changes are on the left and incoming are on the right.  Edit the left pane to be the compromise between these changes.


After you’ve modified a conflicted file and saved the changes, go back to the Git Staging view and drag the into the “Staged Changes” area.   After merging all the conflicts, hit the “Commit” button.

Pushing your changes up to the repository

If you are ready to release your changes to the rest of the group, you can push your commits up to the remote repository.

If you are the only programmer working on a repository, you can push changes from the Git Staging view and its “Commit and Push…” button.

eclipse_git_commit

If  there are multiple programmers, you should just “Commit”.   Later, you can push all changes by right-clicking the project and selecting Team > Push to Upstream.

Synching with the remote repository

There’s an important discipline that everyone must develop with respect to the remote repository, which is that you should always pull in remote changes before pushing up your own.  If there are incoming changes, then you must recheck the merged code to verify that it is OK.

With multiple programmers, you should perform the following steps manually:

  1. Commit your changes locally.
  2. Pull remote changes, and deal with any merge conflicts.
  3. Verify that the merged code compiles correctly and that the code works correctly.  If there are any problems, fix them and then go back to step 1.
  4. Push all commits to the remote repository.

Further Reading:



0
Tutorial

VS Code with GitHub

Posted on by Keith Rieck

So you’re developing code for your robot, but where should you store the master copy of that code?  Keeping everything on a single laptop is a terrible plan;  you at least need backups, maybe multiple backups.  Also, you want to keep the history of the development. You might want to compare the code used in two different competitions. And, if the code worked yesterday but fails today, you want to know what has changed.  In professional software environments, the code is usually stored in a Revision Control System.  FRC teams should also follow this practice.

Software Revision Control systems are databases for storing computer software.  They track the history of all changes to the software and allow groups of programmers to share large programs.  They allow anyone on your team to retrieve the current program, or see the versions of the program from the past.

Probably the most popular revision control system right now is git, a distributed version control system created by Linus Torvalds, the same guy who created Linux. You can use git from the command line, or from within development environments such as Eclipse, IntelliJ, and Visual Studio Code.  GitHub is a web-based hosting service for git, and the GitHub corporation is a FIRST sponsor.  All programming mentors and students can get free GitHub accounts, and FIRST teams can get upgraded Team Accounts.

To say that git is “distributed” means that every programmer will have a copy of the code, along with the history of the changes.  There is also one remote repository of the code out on the internet. Programmers will occasionally pull changes from the remote repository to their local copy and occasionally push their own changes up to the remote repository.  In this way, everyone eventually has the same code and the same history.

Combinations of the code files are called “commits“, and the word “commit” here is both a noun and a verb.  Committing your changes creates a commit that you can retrieve later.

OK, I know that that was a lot of information.  Honestly, git is a really deep subject, and companies that use it develop really complicated methodologies for its use.  I do not recommend that FRC teams try to use everything in the git toolkit, or try to emulate commercial practices.  Especially at first.  Instead, let’s lay out the minimal functions.

Installing git

If you don’t already have git software installed on you laptop, the basic instructions are at:  https://git-scm.com/ .

After installing, open up a terminal window and execute the following:

git config --global user.email "myEmailAddress@whereever.com"
git config --global user.name "My real name"

Note that starting in 2021 GitHub started requiring that users authenticate using Personal Access Tokens. Hopefully, if you install git using the basic instructions above, this should be automatically taken care of, since the default install should include Git-Credential-Manager-Core.

Cloning an existing repository

Suppose that there is a repository on GitHub that you’d like to download to your laptop.  Making a local copy is called making a clone.

Consider the code repository at:  https://github.com/firebears-frc/testrobot0.  Go ahead and visit that page in a browser.  Press the green button labeled “Clone or Download” and then press the little clipboard button.  This will copy the repository’s formal URL into your clipboard.

vsc_git_clone

Now go to Visual Studio Code.

  1. Open the Command Palette by hitting the F1 key (or Control-shift-P on Windows or Command-shift-P on Macintosh).
  2. Type “git clone” and hit the return key.
  3. VS Code will ask for the repository URL.  Paste the URL in and hit return.  You may also need to give your GitHub username and password.
  4. VS Code will ask for the parent directory in which to save the code.  Typically this might be your machine’s Documents directory.
  5. VS Code will ask you if you want to open the repository.  Yes, you do.

At this point you now have a clone of the repository on your machine.  You won’t be able to push changes up to the remote repository unless the owner has granted you permission, but you can read, edit, and deploy this code to the robot.

Creating a new repository

Suppose you have a robot project on your local machine that has never been under git control, but you’d like to upload it into GitHub.

Open the project folder into VS Code and then open a browser to https://github.com.

  1. In the browser, log into your GitHub account.  Click on a green button that says either “New” or “New Repository”.
  2. Github will ask for a repository name.  Give it the same name as project directory on your laptop.  You can also specify a description. Probably you should make it a public repository.
    However, do not add a README file or a .gitignore file or a license file.  Your GitHub remote repository must be totally empty at this point.
  3. After creating the repository, your browser will go to a page which displays your new repository URL.  Copy this value into your clipboard.
  4. In VS Code, open the Command Palette and type “git”.  Select “Git: Initialize Repository”.  A file dialog will pop up.  Click on the “Initialize Repository” button.  Your project will now be under local git control, although no files have yet been committed.  The “Source Control” icon in the Activity Bar will now have a blue circle with the number of uncommitted files.
  5. Now you need to commit all your files.

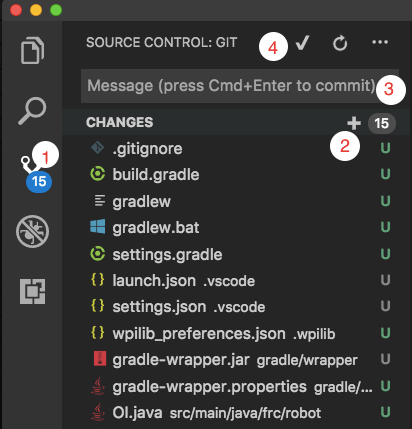

    1. Click on the “Source Control” icon in the Activity Bar.
    2. Click on the plus icon next to Changes.  This will cause all files to be “staged” for a subsequent commit action.
    3. Type in a message describing this commit.  Normally you should put in something informative, but in this case just say “Initial commit”.
    4. Click check-mark icon.  All files are now locally committed.vsc_git_commit
  6. Now we need to add a connection from your local repository to the remote repository.  You must now open a terminal window by typing control-back-quote.  (If you can’t find this key, you can pop down the “View” menu and select “Terminal”).  Type the following lines, with your repository URL pasted into the appropriate spot:
    git remote add origin repository-url
git push -u origin master

Now go back to your browser and visit the page for your new repository.  You should now see all the files listed on the web page.

Comitting changes to the code

In the Activity Bar there is an icon that opens the Source Control sidebar.  This is where we can manage our git status.

vsc_git_sidebar1

From now on, when you add files, delete files, or modify files, git and VS Code will keep track of how your code differs from the most recent commit.  The Source Control sidebar show you which files have changed.

Let’s make some small changes.  Click to the Explorer tab. Create a README.md file and type some text to describe your current file.  Next, make a minor change to Robot.java, such as modifying a comment.  Click back to the Source Control sidebar and you will see a list of the two files you’ve changed.

vsc_git_sidebar2

Double-clicking on any filename will pop up a window outlining your changes.  Hovering your cursor over any filename will reveal action buttons to discard the changes or to stage the file to be committed.

If you are happy with the changes then you can commit them into git. You do not need to commit all the changed files.  Selecting which ones to commit is called “staging” the changes.  In this case, click the “+” button next to both files to stage them both.

vsc_git_sidebar3

Now type in a message and click the check-mark button. Your changes are now committed to the local repository.

One note about commits: only commit code that you know to be good.  It is bad form to commit code that won’t compile or has some significant problem.  We share code with other programmers by sharing commits.  You don’t want to be the person who breaks other people’s code.

Pulling changes back from the repository

Suppose someone else has made changes to the code and pushed them up to the remote repository.  You’d like to fetch those changes and merge them into our code.  This is called doing a pull from the remote.

You can pull at any time, but it is usually best to commit your code locally before pulling.

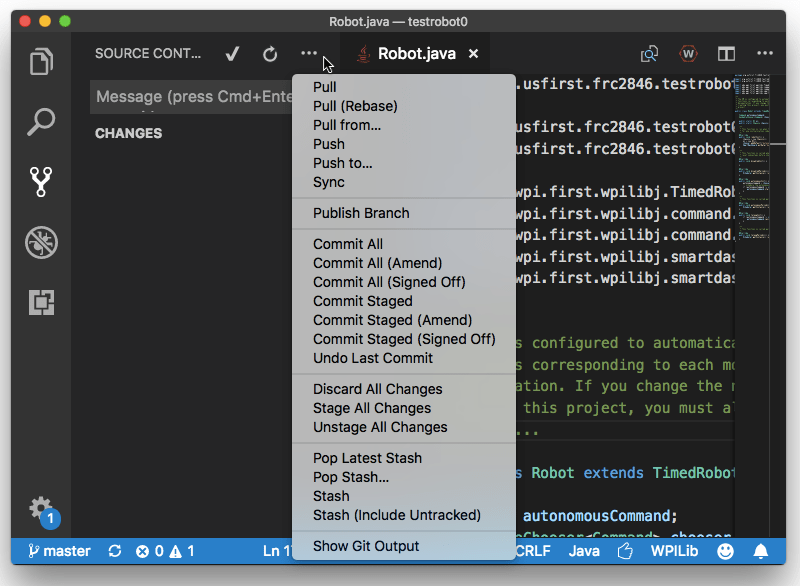

Within the Source Control sidebar of VS Code, click on the three little dots to get the More Actions menu.

vsc_git_pull

Select “Pull” from the menu.  This should merge in all changes from the remote repository.

If the incoming changes are in different files from your own changes, then the new adds/updates/deletes will be applied to your collection of files.

If someone has modified a file that you are working on, but where those changes do not overlap your changes, then git will try to cleverly merge the incoming changes into your file.  This might be perfectly fine, or it might break your code.  These things happen.  Keep calm and fix the code.  It is your responsibility to fix and test your code before pushing it up to the repository.

However, if the incoming changes overlap with your changes, then git will declare a “merge conflict” which you must resolve before you can commit and push.  VS Code will show you each conflict and give you options on how to handle it.  If none of the offered options are correct, you may choose to just edit the file until it is right.  When all code has been fixed, you must stage and commit all changed files.

Pushing your changes up to the repository

If you are ready to release your changes to the rest of the group, you can push your commits up to the remote repository.

Open the More Actions menu and select “Push”.  Done.

Synching with the remote repository

There’s an important discipline that everyone must develop with respect to the remote repository, which is that you should always pull in remote changes before pushing up your own.  If there are incoming changes, then you must recheck the merged code to verify that it is OK.

There is a “Sync” option in the More Actions menu that will do the pull and push in one step.  This can be a nice feature if no one else is working on your code.  If multiple people are working, then Sync does increase the risk that the repository will contain combinations of files that do not work together.  With multiple programmers, you should avoid Sync and perform the following steps manually:

  1. Stage and commit your changes locally.
  2. Pull remote changes, and deal with any merge conflicts.
  3. Verify that the merged code compiles correctly and that the code works correctly.  If there are any problems, fix them and then go back to step 1.
  4. Push all commits to the remote repository.

Further Reading:

0
Tutorial

Installing VS Code

Posted on by Keith Rieck

Note that the following document was written while we were still in the 2019 alpha test of WPILib.  When the 2019 software is officially released, it will include a one-step installer that sets up almost everything into a single frc2019 directory, including a customized version of Visual Studio Code. So, some of the following may be unnecessary, but there is still some good information about VS Code.  Also, you could use the following to roll your own environment, or experiment with developmental versions of WPILib.

When the new software is officially released, it is recommended that you use the one-step installer.

Starting in 2019, the officially supported development environment for FRC software development will be Visual Studio Code. That’s not to say that you cannot use Eclipse, IntelliJ, or vim if you want. In fact, if your team is happy with another environment, then you can safely stick with it. However, the excellent support from the WPILib team will be behind Visual Studio Code.

The first thing to know is that Visual Studio Code is not the same as Visual Studio. Visual Studio is a heavyweight Integrated Development Environment, primary for working with Microsoft applications. Visual Studio Code (let’s call it VSCode) is a much lighter text editor with an extension mechanism. The WPILib team will be providing a new extension for FRC development.

FRC robot programs will be built using GradleRIO, which can also be executed from Eclipse, IntelliJ or from the command line.

Step 0: Install prerequisites

You must install Java.  Even if you will be developing in C++, you’ll need Java installed to run GradleRIO.  You must define your JAVA_HOME environment variable, since VSCode uses it to find your Java install.  After installing, you should be able to execute “java -version” at a command prompt and get back the current version of the java runtime.  Execute “javac -version” to get back the version of the java compiler.

You must install git, instructions for which are at: https://git-scm.com/ Even if you aren’t using git, VSCode expects it.  After installing, try executing “git –version” at a command prompt.  If it prints back the git version number, you’ve installed it correctly.

If you will be doing C++ development, you must install the compiler toolchains at: http://first.wpi.edu/FRC/roborio/toolchains/

Step 1 : Download and install VSCode

VSCode is available for Windows, Macintosh, and Linux. Download the installer from https://code.visualstudio.com/download . If possible, run the installer as Administrator.

Once installed, VSCode will start up at the Welcome screen

vsc_install_vsc

VSCode is pretty feature rich, and you should definitely start reading the documentation and memorizing the keyboard shortcuts.  Here are a few concepts to get started:

  1. The icons on the left edge make up the “Activity Bar”.  Clicking on the icons will open up the “Sidebar” which offers more functions.
    The icon on top opens the “Explorer” sidebar which shows all the files that you can edit.
    The squarish icon on bottom opens the “Extension” sidebar, which lets you manage software extensions for VSCode.
    Hitting control-B (or command-B on a Mac) will toggle away the sidebar, so you can make full use of screen space.
  2. Holding the control key down and hitting the back-quote character will open a terminal panel on the lower part of the screen.  (The back-quote character is usually in the upper left corner of your keyboard, just under the Esc key).   You’ll probably need to get comfortable with terminals and command lines when developing with VSCode.
    Hitting control-back-quote again will toggle the terminal away.
  3. The F1 key will open the “Command Palette” at the top of the screen.  Also, you can hit control-shift-P on Windows or Linux.  Macintosh users can hit Command-Shift-P.  The Command Palette lets you invoke special commands inside VSCode.  It’s pretty good about offering you suggestions for what you want to do.  Many of these functions are available from menus or from keyboard shortcuts, but you’ll find yourself using the Command Palette a lot.
    The FRC extension for WPILib adds new commands to the Command Palette for building robot code and reconfiguring your robot development environment.

Step 2 : Install language extensions

Click the square “Extension” icon on the Activity Bar.

If you will be doing Java development, type “Java Extension Pack” into the sidebar window.  Select the entry for “Java Extension Pack” and click the green Install button.  After the install is done, click the blue Reload button to restart VSCode.

vsc_install_java

If you will be doing C++ development, search for the “C/C++” extension.  Install and Reload.

vsc_install_three_dot

Note the three dots on the upper right corner of the sidebar.  VS Code calls this the “More Actions” button, and clicking on it will open a menu.  Select “Show Installed Extensions” from the menu.  If everything was successful, you should see your extensions listed in the sidebar.

Step 3 : Install the WPILib extension

At the time of this writing, you can get the alpha release of the WPILib extension from https://github.com/wpilibsuite/vscode-wpilib/releases .  Download the VSIX file.

Click the “Extension” icon on the Activity Bar to open up the Extension sidebar.  Click on the More Actions button on the upper right corner of the sidebar and select “Install from VSIX…”  Specify your new VSIX file.  Install and then hit the blue Reload button.

If you show installed extensions, you should now see the WPILib extension added.  The Command Palette will now offer WPILib commands.  There will also be a little “W” button in a red hexagon on the title bar of all windows. It pops open the Command Palette and lists all WPILib commands.

vsc_install_wpilib

Further Reading:

0
